Data v1 Gap-Fill Method

Archive. This page documents the historical v116 construction path. Use the current Methods and Reproduction pages for supported claims and commands.

Archive note: this is the frozen v116 method note. The current compact reproduction commands live in README.md and REPRODUCIBILITY.md. Public-data rebuilds are smoke checks unless the support-pool audit reports historical_support_exact=true; otherwise they are not exact frozen v116 replay.

This document freezes the reproducible data line tagged as data-v1.0.

Method Summary

Data v1 starts from the BUT gap5 extracted 10 s windows and balances only the training split. Validation and test remain native BUT originals.

Fixed protocol:

policy: v116_gapfill_dual_goodorig_nm40_ms10_smc_s20260876
seed: 20260876
final protocol rows: 31590
final class rows: good 10530, medium 10530, bad 10530

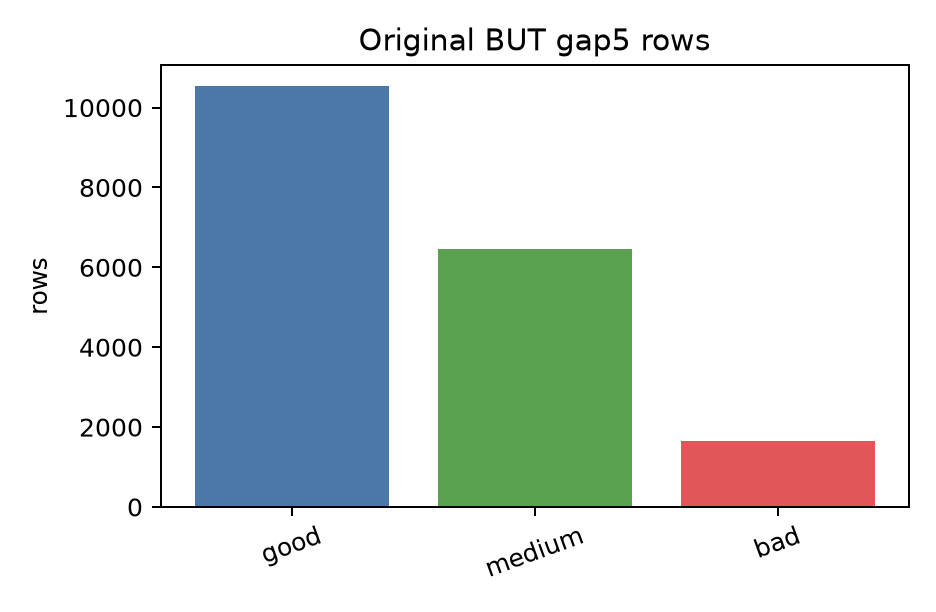

Original BUT gap5 rows:

total  18635
good   10530
medium  6449
bad     1656

Original split before train balancing:

train original: good 8424, medium 5199, bad 1314
val original:   good 1053, medium  618, bad  178
test original:  good 1053, medium  632, bad  164

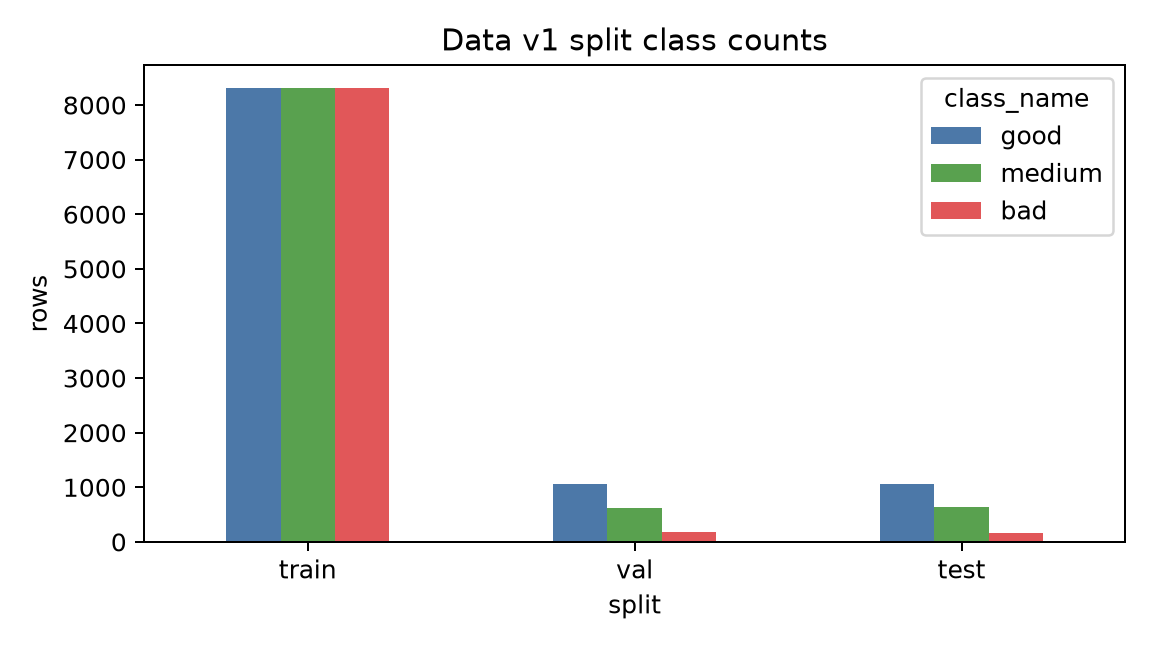

Final training split after exact train-only balance:

train final: good 8310, medium 8310, bad 8310
val final:   1849 rows, original_but only
test final:  1849 rows, original_but only

The 114 surplus good train originals and surplus train-linked generated rows are marked unused; they are not deleted from the protocol bundle.

Generation Rules

Candidate labels are part of the public protocol contract:

original_but
but_native_morph
ptb_morph
clean_style

Rules:

• good is not generated for the final balanced protocol.
• medium and bad keep all eligible original BUT rows, then fill only the training gap.
• but_native_morph uses BUT carriers with small morphology/acquisition perturbations: shift, gain, baseline drift, noise, and class-specific light artifact mixing.
• ptb_morph uses PTB carriers aligned to BUT style/residual support.
• clean_style is capped to a tiny supplement and is not a main component.
• Generated rows are allowed in train only when their donor/linkage resolves to original train support.
• Final medium/bad gap fill uses strict SMC over the generated candidate pools: particles are candidate subsets, each generation scores class-conditional robust-z waveform distribution distance, applies an epsilon accept mask, reweights particles, resamples, and mutates by row swaps. The large candidate bank is a proposal bank, not exact replay.

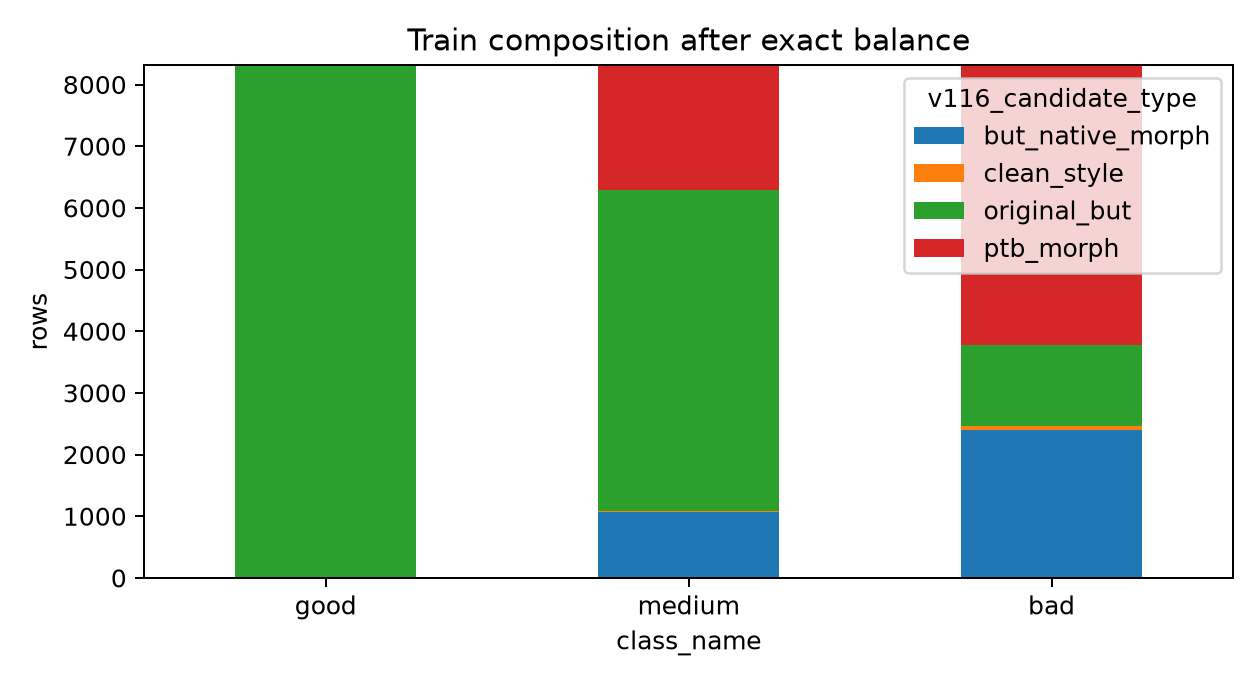

Current exact train composition:

good:
  original_but 8310

medium:
  original_but      5199
  but_native_morph  1061
  clean_style         31
  ptb_morph         2019

bad:
  original_but      1314
  but_native_morph  2393
  clean_style         68
  ptb_morph         4535

Audits

Main data-side acceptance is dual-view waveform generated-vs-original separability, evaluated only on medium and bad; good is excluded because it has no generated rows by design. The reported audit is a 5-fold logistic AUC over waveform-only dual-view channel summary features.

medium sym AUC 0.527
bad    sym AUC 0.548
pooled sym AUC 0.512

Leakage and integrity checks:

val/test generated rows: 0
train generated donor-split problems: 0
allowed candidate types:
  original_but, but_native_morph, ptb_morph, clean_style
missing class rows: 0
missing signal idx rows: 0

Model Check

Training uses raw rows, not the record-balanced sampler.

Model input remains:

signals.npz -> dual-view waveform channels

No SQI table columns are concatenated to the model input. Factor/SQI-like targets remain auxiliary supervision, so the model can learn SQI-like waveform representations but does not receive SQI features as inputs.

Exact-balanced checks:

E4:
  val  acc 0.9513, macro F1 0.9547
  test acc 0.9470, macro F1 0.9569
  test recalls: good 0.9554, medium 0.9209, bad 0.9939

E24:
  val  acc 0.9410, macro F1 0.9444
  test acc 0.9243, macro F1 0.9342
  test recalls: good 0.9326, medium 0.8924, bad 0.9939

E31_wave_mechanism_conformer:
  val  acc 0.9508, macro F1 0.9569
  test acc 0.9432, macro F1 0.9525
  test recalls: good 0.9421, medium 0.9320, bad 0.9939

Reproduction Commands

Audit the current materialized protocol:

python -m src.transformer_pipeline.data_v1_gapfill audit

Create the small method figures:

python -m src.transformer_pipeline.data_v1_gapfill plot

Print the exact protocol build command:

python -m src.transformer_pipeline.data_v1_gapfill build

Run the exact protocol build command:

python -m src.transformer_pipeline.data_v1_gapfill build --run

Print the exact split command:

python -m src.transformer_pipeline.data_v1_gapfill split

Run the exact split command:

python -m src.transformer_pipeline.data_v1_gapfill split --run

Print the exact E31 training check command:

python -m src.transformer_pipeline.data_v1_gapfill train-check --model E31

Run the exact E31 training check:

python -m src.transformer_pipeline.data_v1_gapfill train-check --model E31 --run

Run the full line:

python -m src.transformer_pipeline.data_v1_gapfill pipeline --run --train E31

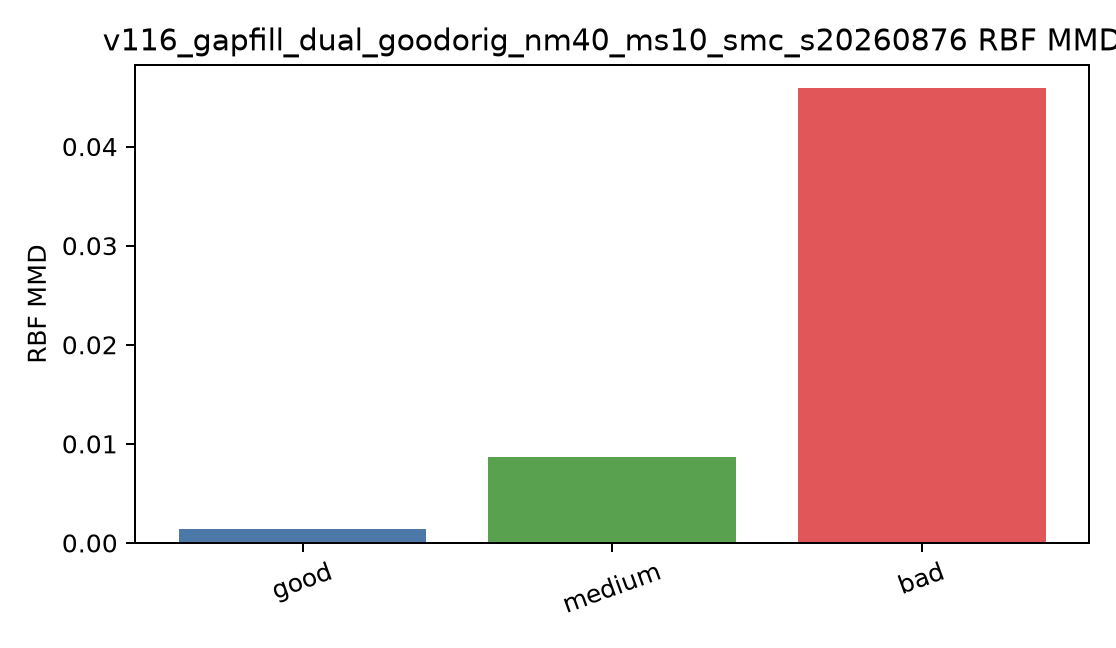

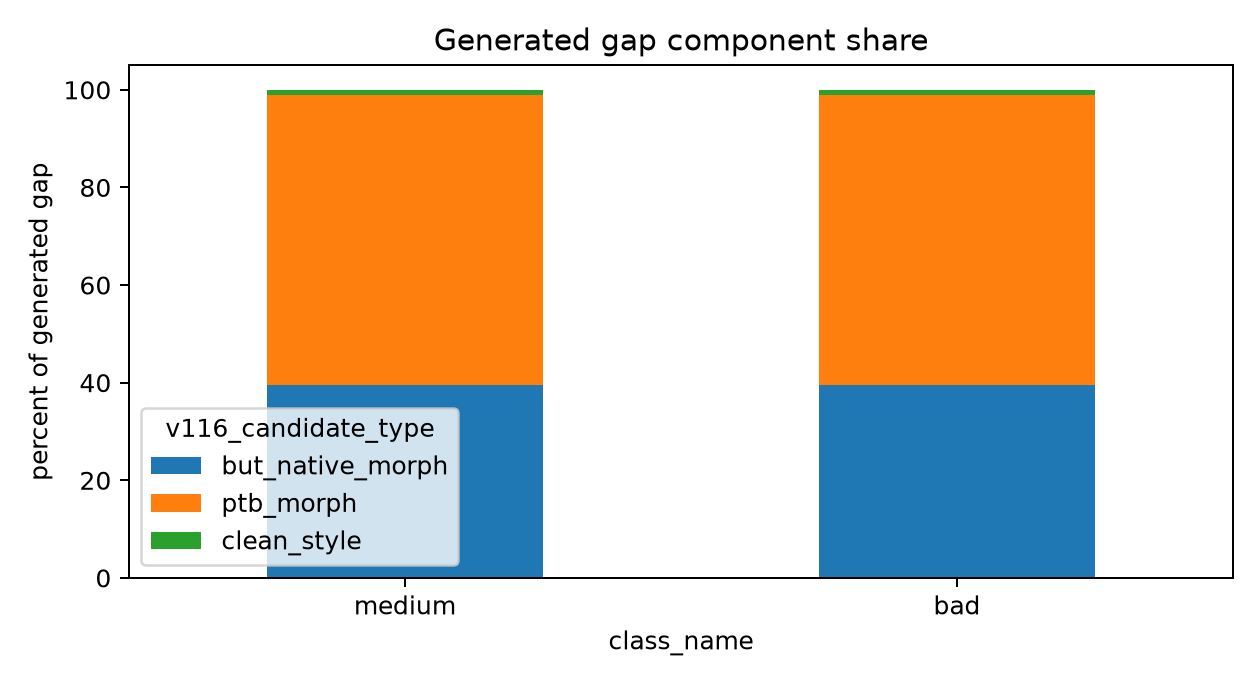

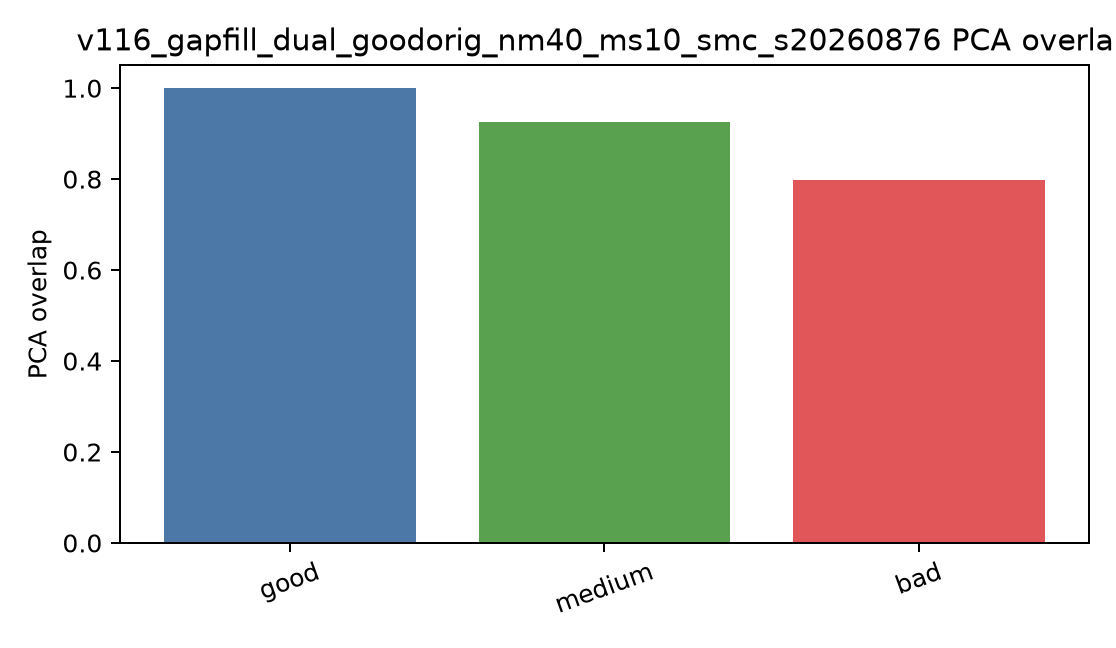

Figures
